Price: $2,090.00
In Stock: Yes
SKU: pc-daw-chenbro-a-1200-d4

Music Production PC

Music Production PC

Our MusicMaker™ Music Production PC is a workhorse DAW computer built for maximum speed, connectivity, and silence. The Music Production PC is fast, but affordable, and has options for amazingly quick throughput, for recording to external devices via Thunderbolt 4 or Legacy 1394 (Firewire).

Thunderbolt 4 or Legacy Firewire Music Options

Along with the Thunderbolt 4 support needed by music professionals, the Asus Prime Z590-A motherboard has the capability of up to 3X M.2 NVMe (1x M.2 PCIe 4.0 x4), with transfer speeds of up to 7000 MB/s, versus the SATA III SSD speeds of up to 550 MB/s. We also include an option for a TI Chipset based 1394 card for anyone who would like to use a legacy external Firewire sound device. The TI chipset is an industry standard chipset for legacy Firewire devices due to stability and compatibility.

Silent Work Environment For Music Production

Thunderbolt Logo

Every single item in our Music Production PC (not just a select few) is geared to produce a completely silent work environment for audio recording. This silent environment is imperative when it comes to studio music recording, with an absolutely dry signal for cleaner mixes. A clean recording requires the added attention to silence that we bring to the picture. You want to hear all of the beautiful details of your audio, and the last thing you want to hear in your studio recordings, is your PC!

As always, we aren't limited to the options that are on our website, and would be happy to use any compatible motherboard, or component that you would like us to special order in for you.

Music Production PC Features

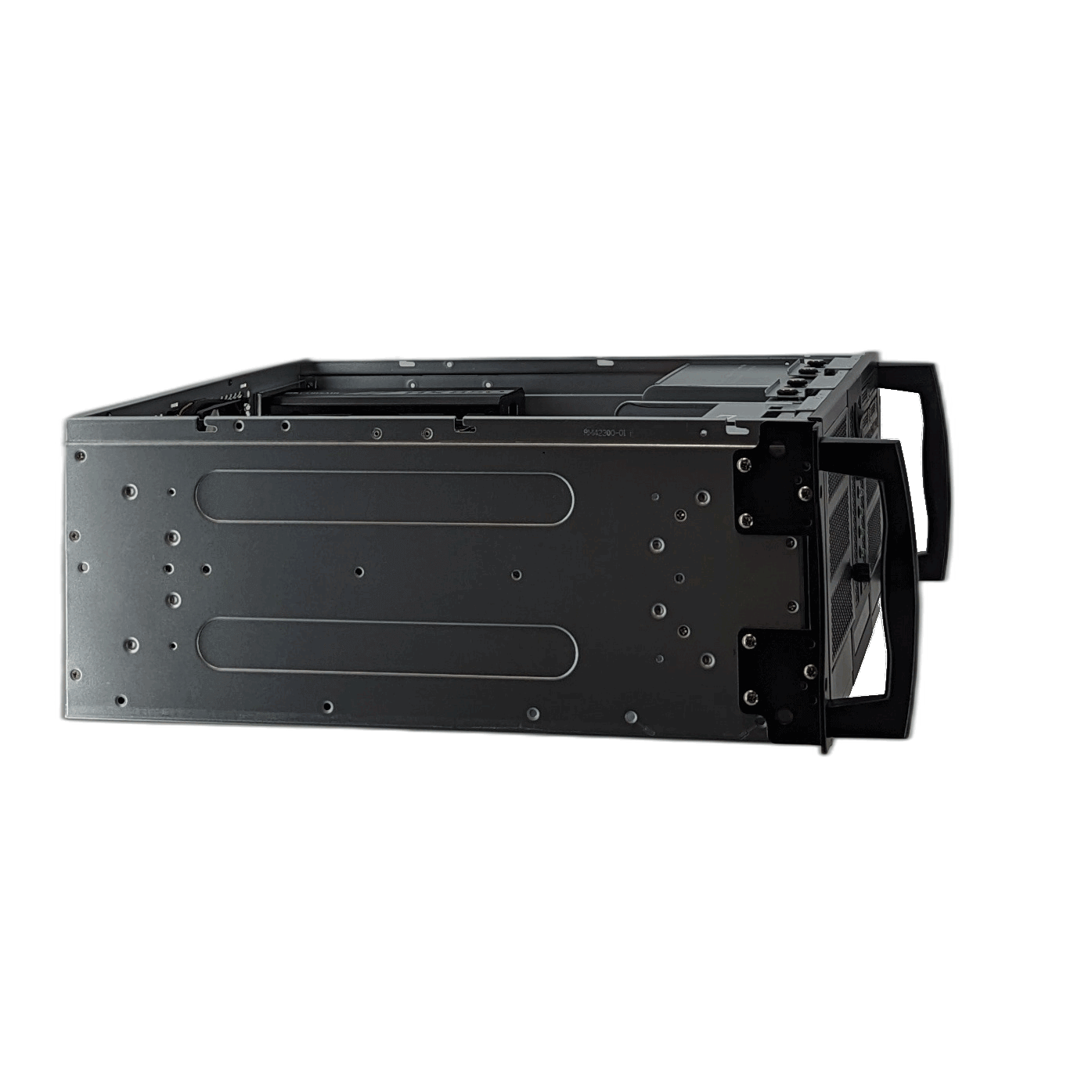

This Music Production PC is built around the Chenbro RM42300-F 17.5" compact 4U rackmount case. As always we replace the noisier stock fans with ultra quiet Nexus® case fans.

  • Intel® Socket 1200 for 11th Generation Rocket Lake Processors
  • Thunderbolt 4 Header
  • Up to 128 GB of DDR4 Memory (Quad Channel Memory Architecture)
  • Up to 4 Quiet Hard Drives
  • Up to 3x M.2 NVMe Drives (1x M.2 PCIe 4.0 x4, 2x M.2 PCIe 3.0 x4)
  • Rackmount PC
  • Easy Upgrades
  • System Net Weight Starting At: 36lbs

Inside of the MusicMaker Music Production PC

Music Production PC Dimensions

  • Height: 6.9" (176mm)
  • Width: 16.9" (430mm)
  • Depth: 17.5" (445mm)

Music Production PC Core Components

LGA1200 Intel® 11th Generation Processor Ready This motherboard supports Intel® 11th generation Intel® Core™ processor-based platform with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, up to 128GB DDR4 memory and 24 PCI Express 3.0/2.0 lanes. This provides great graphics and data crunching performance. Intel® 11th generation Intel® Core™ processor-based platform processors are among the most powerful and energy efficient CPUs in the world.

Quiet Hard DriveQuiet Hard Drives Every DAW (digital audio workstation) comes defaulted with some of the most silent hard drive options available. If you are looking for total silence choose an SSD! Solid-state drives (SSD) have no moving parts, so they make no noise, have blazing fast read times, and are more reliable than standard mechanical hard drives.

Asus Motherboard logoQuality Asus Motherboard We feature the latest ASUS® motherboards in our quiet computers. ASUS® is the world's best selling and most award winning motherboard manufacture. They provide supreme reliability, top-notch cutting-edge features and excellent manufacturer support. Our motherboards contain fanless heatsinks and heatpipes, to effectively cool the chipset heatsink and voltage regulators, without the use of noisy fans.

High Quality Memory This DAW comes with high quality Kingston® memory. We use Kingston® memory because it is highly reliable and features a lifetime warranty. Our Music Production PC has options for up to 128GB of RAM for true professional audio recording performance.

Music Production PC Motherboard

Z590-A Motherboard

  • Intel® Socket 1200 (Rocket Lake) 11th Generation Processors
  • Max. 128 GB, DDR4
  • Intel® Z590 Chipset
  • Video Output
    • HDMI | DisplayPort
  • 6x SATA 6.0 Gb/s ports
  • 3x M.2 (1x PCIe 4.0 x4)
  • 1x Thunderbolt 4 header
  • 1x USB 3.2 Gen. 2x2 (20 Gbps - 1x USB Type C)
  • 4x USB 3.2 Gen. 2 (10 Gbps - 1x Type-C, 3x Type-A)
  • 3x USB 3.2 Gen. 1 (USB 3.0) (up to 2x Type A, 1x Type-C) (1x on backpanel)
  • 2x USB 2.0 Headers (up to 4x USB 2.0)
  • Expansion Slots
    • 3x PCIe 3.0 x16 (x16 or x8/x4/x4)
    • 8-Channel High Definition Audio
    • 24x Chipset Lanes
    • ATX Form Factor
    • Manufacturer Link

In addition to all these features, backs all of our DAW PCs with a Two-Year Warranty, includes Free Shipping and our meticulous packaging, and provides the most professional and courteous technical support in the market today. Not sure what configuration would best suit you? Contact our Sales Team to receive a custom quote!



Not seeing what you are looking for? is, at our very core, a custom PC builder. So, if you are not seeing the option you need or if you have any questions, don’t be afraid to ask. We can add the part, find the solution, or build you something totally custom. All you need to do is ask our sales team.

Extensive Testing

Each of our systems go through a rigorous burn-in and testing process ensuring that each system is quiet and stable before it ships. We only build with the quietest, most reliable, components available.

Clean OS Installs

We ship a clean system and will not install any trial software, advertisements or promotional offers. Your system will come will all the drivers disks and software necessary to reinstall if necessary.

No Outsourcing

Every system is custom assembled in Battle Ground, Washington. If you contact sales or support, your call or email will be answered by a technician. No long phone trees, queues or ticketing systems to wade through.

Fast & Free Shipping

All systems include FREE UPS Ground Shipping in the continental United States. Most systems will be assembled, tested, and shipped within 5-10 business days of the order. Rush processing options are available.
